big-parts-llc TRACK BOLT TORQUE AND TIGHTEN!

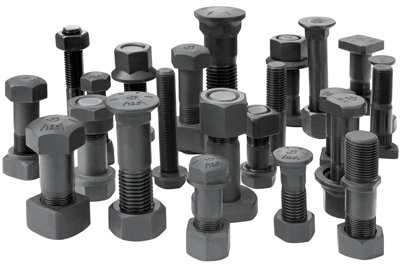

bolts

BOLT DIAMETER SOCKET SIZE INITIAL TORQUE FINAL TORQUE
INCH MM INCH MM
1  3/8″ 2  1/16″ 1125 FT LBS + 1/3 TURN D11R, D11N & 5130
1  1/8″ 1  11/16″ 675 FT LBS + 1/3 TURN D10T, D10R, D10N & D10
1″ 1  1/2″ 675 FT LBS + 1/3 TURN D9T, D9R, D9N & D9L
1″ 1  1/2″ 425 FT LBS + 1/3 TURN 1160 – 1280 FT LBS
7/8″ 1  5/16″ 505 FT LBS + 1/3 TURN D8T,D8R,D8N & D8L
7/8″ 1  5/16″ 275 FT LBS + 1/3 TURN 760 – 840 FT LBS
3/4″ 1  1/8″ 325 FT LBS + 1/3 TURN 517,527,D7H,D6H,D5HHD,D7R,D6R,D6T,D6M-HD
3/4″ 1  1/8″ 240 FT LBS + 1/3 TURN 475 – 525 FT LBS
5/8″ 15/16″ 135 FT LBS + 1/3 TURN 270 – 300 FT LBS
9/16″ 7/8″ 72 FT LBS + 1/3 TURN 190 – 210 FT LBS
1/2″ 3/4″ 48 FT LBS + 1/3 TURN 133 – 210 FT LBS
1/2″ 3/4″ 172 FT LBS + 1/3 TURN 307 – E70
7/16″ 32 FT LBS + 1/3 TURN 86 – 94 FT LBS
33MM 50MM 675 FT LBS + 1/3 TURN
30MM 41MM 710 FT LBS + 1/3 TURN
27MM 41MM 435 FT LBS + 1/3 TURN
24MM 32MM 505 FT LBS + 1/3 TURN
22MM 32MM 395 FT LBS + 1/3 TURN 790 – 875 FT LBS
20MM 30MM 325 FT LBS + 1/3 TURN 600 – 660 FT LBS
18MM 27MM 210 FT LBS + 1/3 TURN 400 – 440 FT LBS
16MM 24MM 145 FT LBS + 1/3 TURN 275 – 305 FT LBS
14MM 22MM 77 FT LBS + 1/3 TURN 180 – 200 FT LBS
12MM 40 FT LBS + 1/3 TURN 118 – 132 FT LBS
10MM 25 FT LBS + 1/3 TURN 64 – 74 FT LBS
FINAL TORQUE IS NOT ESTABLISHED, MUST ADD 1/3 TURN TO INITIAL TORQUE
